CATEGORY: | CERAMIC FUN-SPRAY NOZZLES |
---|---|
MANUFACTURER: | MAGNOJET |

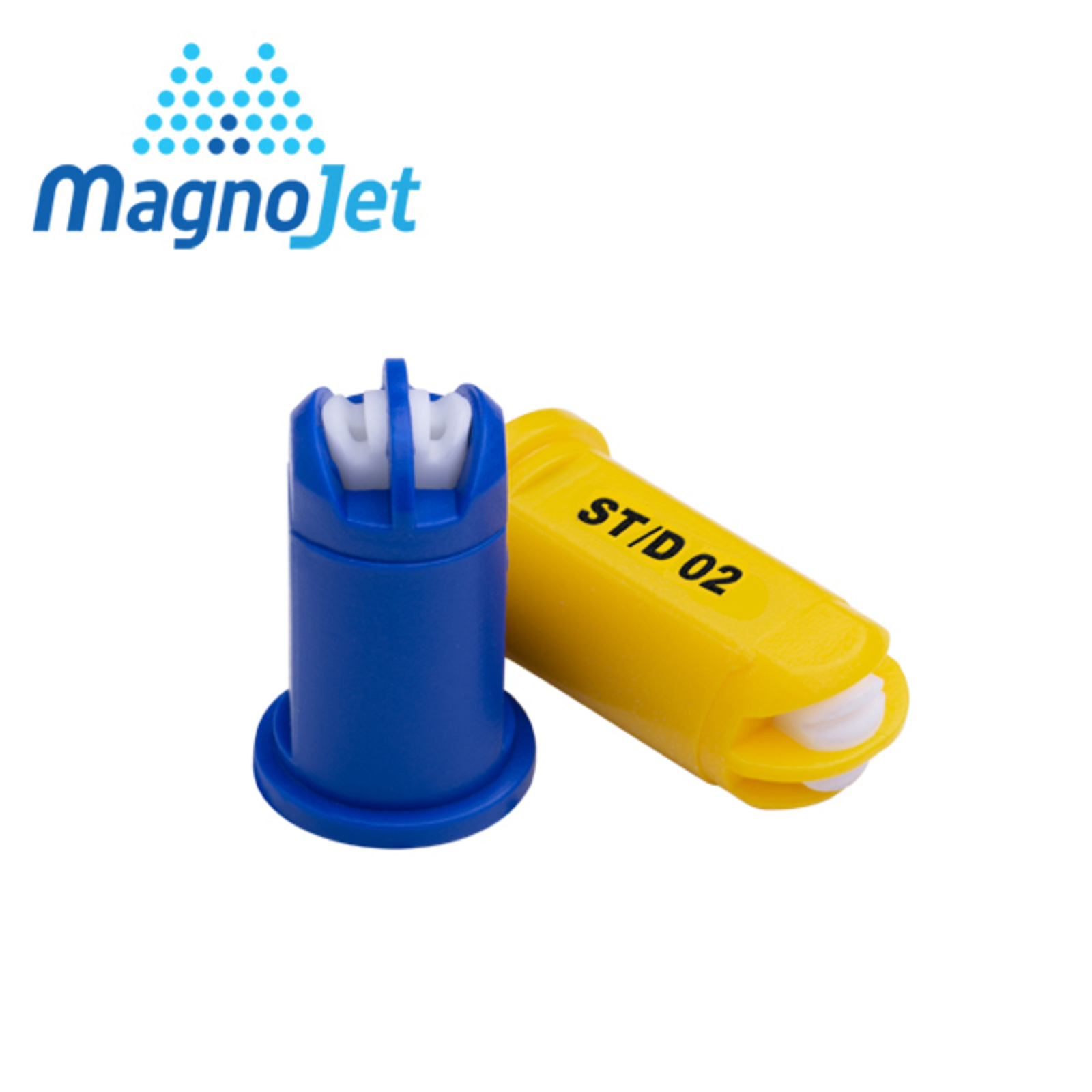

Features
- High strength ceramic core (99% Alumina) with excellent wear resistance from friction.
- It produces two brooms with opening angles of 130° with a 40° inclination between them.
- The front broom has an attack angle for better droplet penetration, while the rear broom favors better distribution on the plant, good for crops of medium and large leaf masses.
- The opening angle of 130° (the largest in the category), favors working with a minimum height of the spray rods at 35 cm from the target. (*For a distance of 50 cm between nozzle sockets).
Extra large (428 to 349 µm), large (349 to 218 µm) and medium (218 to 177 µm) droplets, according to working pressures. - Dual ceramic corner holes ensure good penetration and droplet distribution on the target, reducing clogging rates.
- It is indicated for post-emergence control of weeds, insects and fungi through contact products in the initial, middle and late stages of cultivation.
CODE | TYPE | SPRAY ANGLE | PRESSURE |
---|---|---|---|
536.120 | 01 | 130° | 2.07-5.17 bar |
536.121 | 05 | 130° | 2.07-5.17 bar |
536.122 | 02 | 130° | 2.07-5.17 bar |
536.123 | 025 | 130° | 2.07-5.17 bar |
536.124 | 03 | 130° | 2.07-5.17 bar |
536.125 | 04 | 130° | 2.07-5.17 bar |
536.126 | 05 | 130° | 2.07-5.17 bar |
536.127 | 06 | 130° | 2.07-5.17 bar |
