CATEGORY: | CERAMIC FUN-SPRAY NOZZLES |
---|---|
MANUFACTURER: | MAGNOJET |

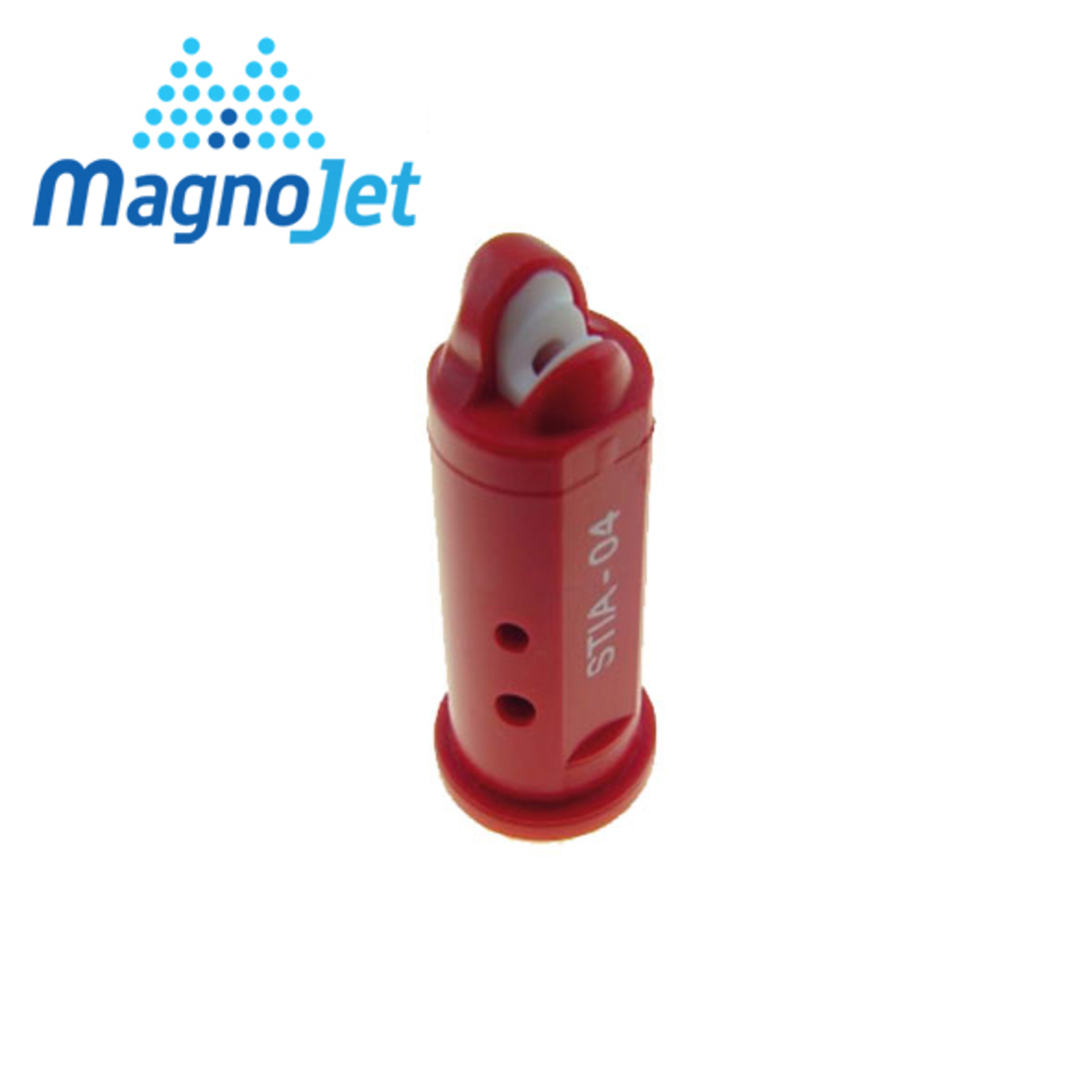

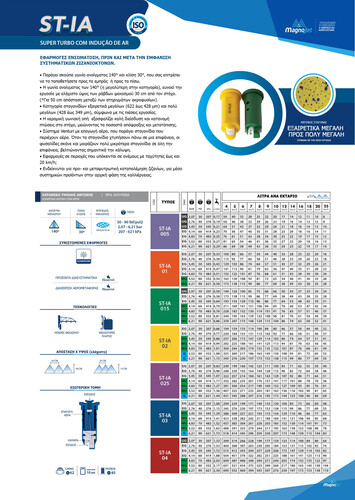

ST-IA SERIES AIR INDUCTION “SUPER TURBO”
Air induction nozzles for full-field use
Features
- Made in ceramic with a 99% alumina content
- These nozzles have a wide opening angle (140º) which means the mist blower boom can be used closer to the point to spray
- 30° fan angle ensuring better penetration in the point to spray (or on crops with a mass of leaves)
- A bigger outlet hole for easier cleaning and no clogging
- It can be used even with 20 km/h winds
- Pressure recommended ranges from 2 to 6.5 bar
- It has a Venturi air induction system for the drops so they can become very big even at high pressures.
CODE | TYPE | SPRAY ANGLE | PRESSURE |
---|---|---|---|
537.002 | 1 | 140° | 2-6.2 bar |
537.004 | 015 | 140° | 2-6.2 bar |
537.006 | 2 | 140° | 2-6.2 bar |
537.008 | 025 | 140° | 2-6.2 bar |
537.010 | 3 | 140° | 2-6.2 bar |
537.012 | 4 | 140° | 2-6.2 bar |
